Specifications

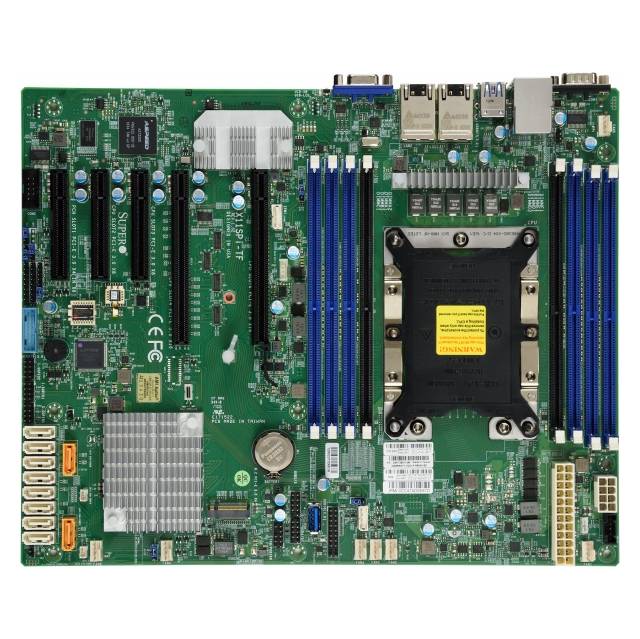

• Mfr Part Number: X11SPI-TF-O

• CPU: LGA3647
  • Supports Intel Xeon Scalable Processor

  • Support up to 205W TDP

  • Up to 28 cores

• Chipset: Intel C622

• Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Support up to 1TB 3DS ECC/Load Reduced Memory or up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory

• Slots: 2x PCI-Express 3.0 x16 Slots (one x16 or x8), 2x PCI-Express 3.0 x8 Slots (one x0 or x8), 1x PCI-Express 3.0 x4 Slot (in x8)

• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10

• Video: ASPEED AST2500 BMC Graphics

• LAN: Dual LAN with 10GBase-T with Intel X722 + X557

• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 10GBase-T Ports

• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm

• RoHS Compliant
