Specifications

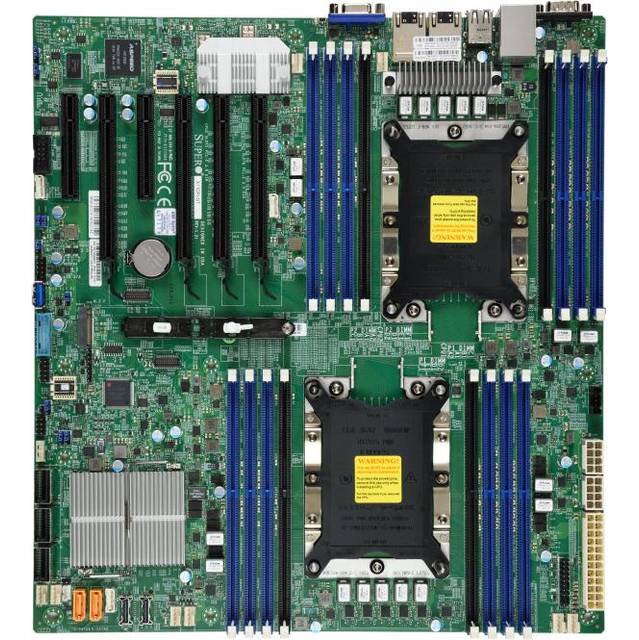

• Mfr Part Number: X11DPI-N-O
• CPU: Dual Socket P LGA3647
  • Support Intel Xeon Scalable Processors
  • CPU TDP support 205W
  • 2 UPI up to 10.4 GT/s
  • Up to 28 cores
• Chipset: Intel C621
• Memory: 16x DDR4-2666/ 2400/ 2133 MHz ECC DIMM Slots, Support up to 2TB 3DS ECC/REG Memory or up to 2TB 3DS ECC/Load Reduced Memory
• Slots: 4x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots
• SATA: 14x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• LAN: Dual LAN with Gigabit from C621
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 2x USB 2.0 Ports, 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 Gigabit Ethernet LAN Ports
• Form Factor: EATX, 12.0 x 13.0 inch / 30.48 x 33.02 cm

• RoHS Compliant
