Specifications

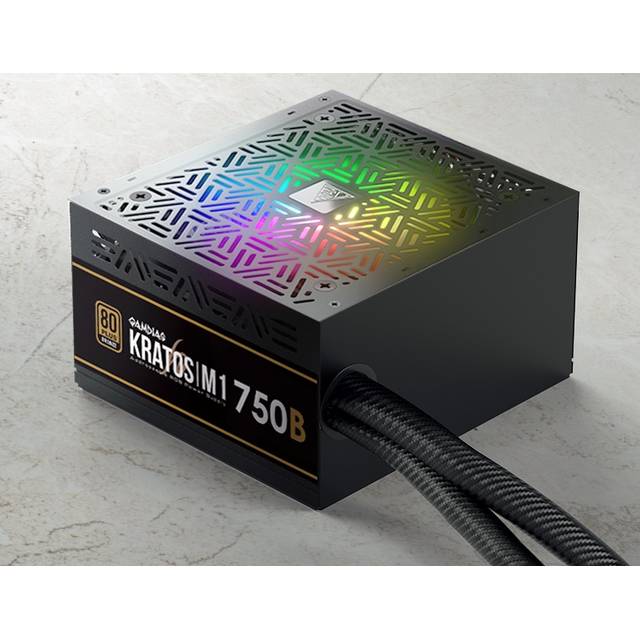

• Mfr Part Number: KRATOS M1-750B

• Features:
  • Meet 80+ PLUS Bronze Efficiency

  • RGB Motherboard Sync

  • Neon-Flex RGB 30 built-in lighting effects

  • Addressable LEDs
  • Silent Mode

  • Support C6/C7 power state

• Total Power: 750W

• Input:
  • Voltage: 100 ~ 240 V

  • Current: 6.0 ~ 12.0 A

  • Frequency: 47 ~ 63 Hz

• Type: ATX12V v2.2

• Power Factor Correction: APFC with PF value of 0.99

• Efficiency: Meet 80 PLUS Bronze efficiency

• Cooling System: N/A

• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 60A, -12V @ 0.3A, +5Vsb @ 2.5A

• Connectors: 1x 20+4-pin Main Power Connector; 1x 4+4-pin CPU Connector, 2x 6+2-pin PCI-Express Connectors, 5x 5-pin SATA Connectors, 2x 4-pin Molex Connectors, 1x 4-pin Floppy Connector

• Protection: OVP/ UVP/ OPP/ OCP/ SCP/ SP/ ICP

• Dimensions: 6.28 x 5.90 x 3.38 inch
