Specifications

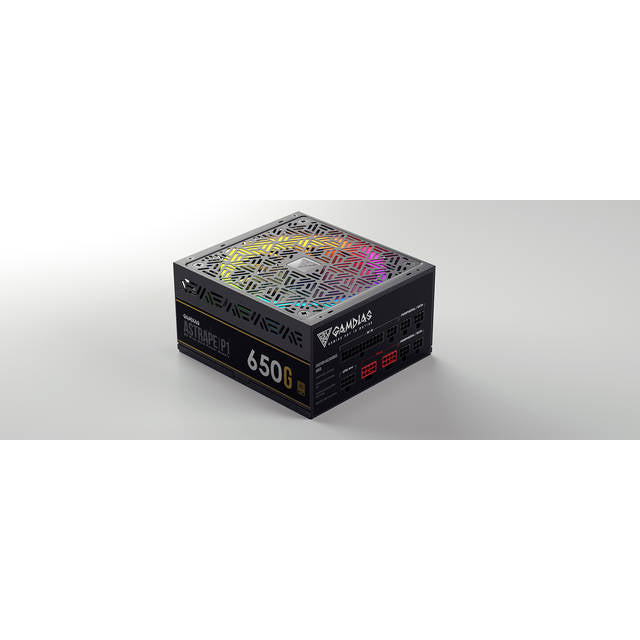

• Mfr Part Number: ASTRAPE P1-650G
• Features:
  • 80 PLUS Gold Certified up to 90% Efficiency

  • 100% Japanese Capacitors
  • Fully Modular & Flat Cables
  • One Touch to Easily Switch 26 Lighting Effects Including White Light, Neon-Flex RGB, Multi-color, and LED off
  • 135mm FDB silent fan
  • Multi-GPU ready - Support nVIDIA SLI and ATI CrossFire
  • DC to DC design for steady voltage output and powerful single +12V rail
  • Support ATX12V v2.4, EPS 2.92, ERP 2013 Lot6
  • Complete protections - OVP, UVP, OPP, OCP, SCP, SP, ICP
  • Face-up Placement for Better Cooling
  • Silent mode
• Power:
  • Total Power: 650W
  • Peak Power: 780W
• Input:
  • Voltage: 100 ~ 240 V
  • Current: 10.0 A
  • Frequency: 47 ~ 63 Hz
• Type: ATX12V v2.2
• Power Factor Correction: Active PFC
• Efficiency: 80 PLUS Standard Certified
• Cooling System: 135mm Fluid Dynamic Bearing Fan
• Output: +3.3V @ 22A, +5V @ 22A, +12V @ 54.2A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20+4-pin Main Power Connector; 2x 4+4-pin CPU Connectors, 4x 6+2-pin PCI-Express Connectors, 9x 5-pin SATA Connectors, 3x 4-pin Peripheral Connectors, 1x 4-pin Floppy Connector
• Protection: Over Voltage Protection, Under Voltage Protection, Over Power Protection, Short Circuit Protection, Surge Protection, Inrush Current Protection
• Color: Black
• Dimensions: 150.0 x 86.0 x 163.0 mm
