Specifications

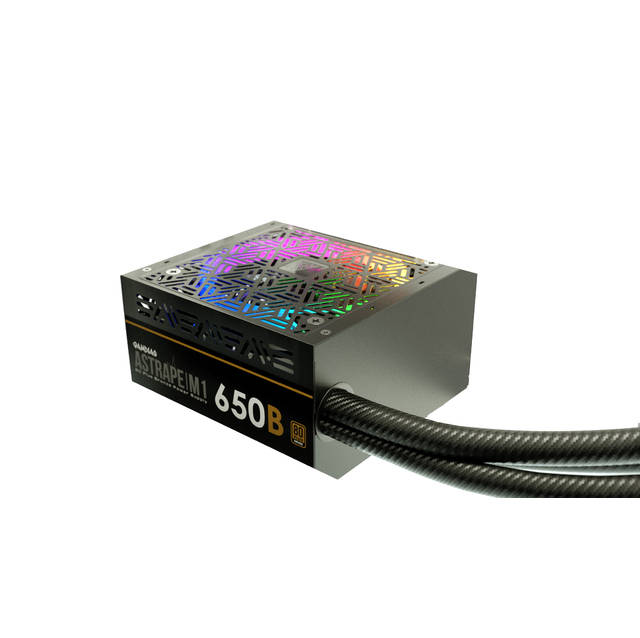

• Mfr Part Number: ASTRAPE M1-650B
• Features:
  • 80 PLUS® Certified up to 85% Efficiency

  • One Touch to Easily Switch 26 Lighting Effects including Neon-Flex RGB, Multi-color and LED off
  • Silent Mode
  • 120mm FDB Silent Fan
  • Face-up Placement for Better Cooling
• Power:
  • Total Power: 650W
  • Peak Power: 780W
• Input:
  • Voltage: 100 ~ 240 V
  • Current: 10.0 ~ 5.0 A
  • Frequency: 47 ~ 63 Hz
• Type: ATX12V v2.2
• Power Factor Correction: Active PFC
• Efficiency: 80 PLUS Standard Certified
• Cooling System: 120mm Fluid Dynamic Bearing Fan
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 52A, -12V @ 0.4A, +5Vsb @ 2.5A
• Connectors: 1x 20+4-pin Main Power Connector; 1x 4+4-pin CPU Connector, 2x 6+2-pin PCI-Express Connectors, 5x 5-pin SATA Connectors, 2x 4-pin Peripheral Connectors, 1x 4-pin Floppy Connector
• Protection: Over Voltage Protection, Under Voltage Protection, Over Power Protection, Short Circuit Protection, Surge Protection, Inrush Current Protection
• Color: Black
• Dimensions: 150.0 x 86.0 x 140.0 mm
