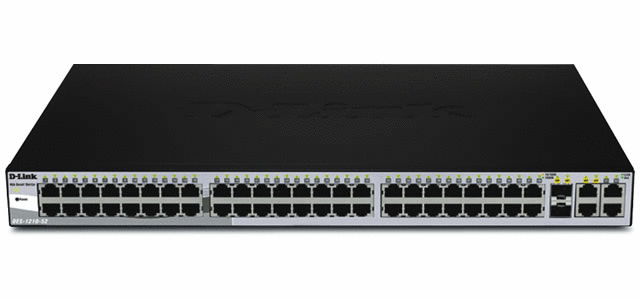

Zoom D-Link DES-1210-52 Web Smart 48-Port 10/100 Switch w/ 2x Giga-bit Ports & 2x Combo SFP Slots

D-Link DES-1210-52 Web Smart 48-Port 10/100 Switch w/ 2x Giga-bit Ports & 2x Combo SFP Slots

$338.61 $404.99
Specifications
  • Mfr Part Number: DES-1210-52
  • Features:
    • Web Smart Switch with 48x 10/100Mbps Ports, 2x 10/100/1000BASE-T and 2x combo 10/100/1000BASE-T/SFP
    • Fanless Design: Provides Continuous, Reliable, Silent and Eco-Friendly Operation
    • Security Features: Access Control List, D-Link Safeguard Engine and Port Security
    • Intuitive Management: SmartConsole or Web-Based GUI, Built-in MIB Browser for SNMP, D-View 6.0 Module Support and Compact CLI through Telnet
    • Supports Auto Voice VLAN and DSCP QoS for VoIP Application
  • Ports:
    • 48x 10/100Mbps
    • 2x 10/100/1000BASE-T
    • 2x combo 10/100/1000BASE-T/SFP
  • Port Standards & Functions:
    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
    • IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
    • Auto-negotiation
    • IEEE 802.3x Flow Control
  • Network Cables: UTP Cat.5, Cat.5e (100m max); EIA/TIA-568 100-ohm STP (100m max)
  • Full/Half Duplex: Full/half duplex for 10/100Mbps speeds; Full duplex for Gigabit speed
  • Media Interface Exchange: Auto MDI/MDI-X adjustment for all twisted pair ports
  • Switching Capacity: 17.6Gbps
  • Transmission Method: Store-and-forward
  • MAC Address Table: 8K entries per device
  • MAC Address Update: Up to 256 static MAC entries; Enable/disable auto-learning of MAC addresses
  • RAM Buffer: 1MB per device
  • L2 Features:
    • MAC Address Table: 8K
    • Flow Control: 802.3x Flow Control; HOL Blocking Prevention
    • IGMP Snooping: IGMP v1/v2 Snooping; Supports at least 64 static multicast addresses; Supports IGMP Snooping Querier; Supports 256 IGMP groups; IGMP per VLAN
    • Spanning Tree Protocol: 802.1D STP; 802.1w RSTP
    • Loopback Detection: Yes
    • 802.3ad Link Aggregetion: 8 groups per device/8 ports per group
    • Port Mirroring: One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
    • Cable Diagnostics: Yes
    • Configurable Auto MDI/MDI-X: Yes
  • VLAN:
    • 802.1Q: 2003 Edition
    • VLAN Group: Max 256 static VLAN groups, max 4094 VID
    • Management VLAN: Supports 1 Management VLAN
    • Asymmetric VLAN: Yes
    • Auto Voice VLAN: Max. 10 user defined OUI, Max. 8 default OUI
  • QoS:
    • 802.1p Quality of Service: 4 Queues per port
    • Queue Handling: Strict, Weighted Round Robin (WRR)
    • CoS based on: 802.1p Priority Queues, DSCP
    • Bandwidth Control: Port-based (Ingress/Egress, min. granularity 64 Kb/s)
  • Security:
    • 802.1X Port-based Access Control: Default 802.1X forwarding
    • Port Security: Supports up to 64 MAC addresses per port
    • Traffic Control: Broadcast/Multicast/Unicast Storm Control
    • Static MAC: Supports 256 Static MAC entries
    • D-Link Safeguard Engine: Yes
  • Management:
    • Web-based GUI: Supports IPv4
    • Compact CLI through Telnet: Yes
    • Telnet Server: Maximum connection is 4, Supports IPv4
    • TFTP Client: Supports IPv4
    • SNMP: Supports v1/v2c
    • SNMP Trap: Yes
    • Trap for SmartConsole Utility: Yes
    • System Log: Max. 500 log entries, supports IPv4 log server
    • BootP/DHCP Client: Yes
    • Time Setting: SNTP
  • AC Input: 100 ~ 240V AC, 50/60 internal universal power supply
  • Dimensions: 17.4 x 9.8 x 1.7 inch / 441 x 250 x 44 mm
  • Weight: 7.27 lbs / 3.3 kg

Vendor: D-Link
