Specifications

• Mfr Part Number: ITX-AP300W

• Features:

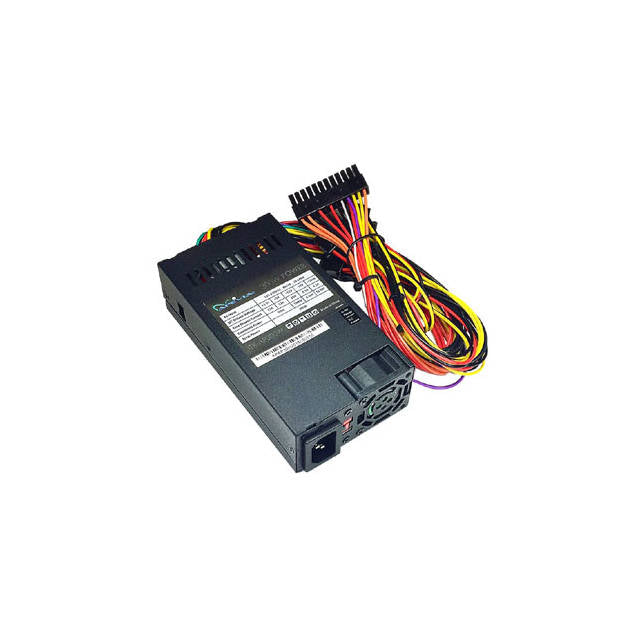

  • Apevia 300W Flex ATX Power Supply

  • High stability with 5% tolerance of 5V, 3.3V & 12V output
• Maximum Power: 300 W

• Input:
  • Voltage: 115 - 230 V

  • Current: 8A for 115V AC, 4A for 230V AC

  • Frequency Range: 50 - 60 Hz

• Type: Flex ATX

• Fan: Forced Air Ventilation by 1x 40mm Double Ball Bearing Fan

• Output: +3.3V @ 12A, +5V @ 12A, +12V @ 20A, -12V @ 0.3A, +5Vsb @ 2.5A

• Connectors: 1x 20/24pin Main Connector, 1x P4 12V Connector, 2x SATA Connectors, 2x 4Pin Peripheral Connectors, 1x Floppy Connector

• Color: Black Matte Coating

• Dimensions (WxLxH): 3.21 x 5.90 x 1.59 inch / 81.5 x 150.0 x 40.5 mm

• Weight: 1.8 lbs
