Specifications

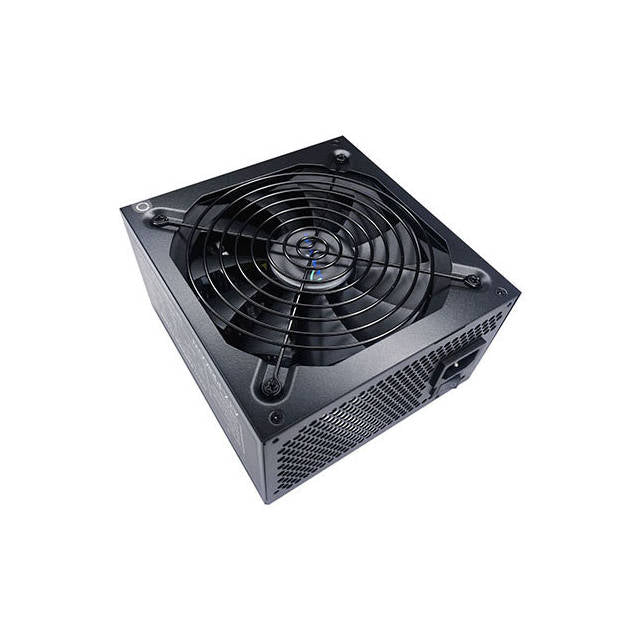

• Mfr Part Number: ATX-SP700W
• Features:
  • Connectors:1 x 20/24pin Main Power, 1 x 4+4pin 12V, 1 x PCI 6+2pin, 4 x SATA, 4 x Peripheral, 1 x Floppy
  • 1 x Auto-Thermally Controlled Black 120mm Fan. 115/230V Switch
  • 5% Tolerance of 5V, 3.3V & 12V Output
  • Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections
• Maximum Power: 700 W
• Input:
  • Voltage Range: 115 - 230V
  • Frequency: 50 - 60Hz
  • Current: Input current:8A for 115VAC, 4A for 230VAC
• Connectors: 1 x 20/24pin Main Power    1 x 4+4 pin 12V    4 x SATA    4 x Peripheral    1 x Floppy    1 x 6+2pin PCI Express
• Fan: Forced air ventilation by 1 x 120mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 6.3 x 5.9 x 3.4 inch / 160.0 x 150.0 x 85.0 mm
• Weight: 4.0 lbs
• Switches:Additional power rocker switch 115/230 Volt selector switch
• Material:Metal
