Specifications

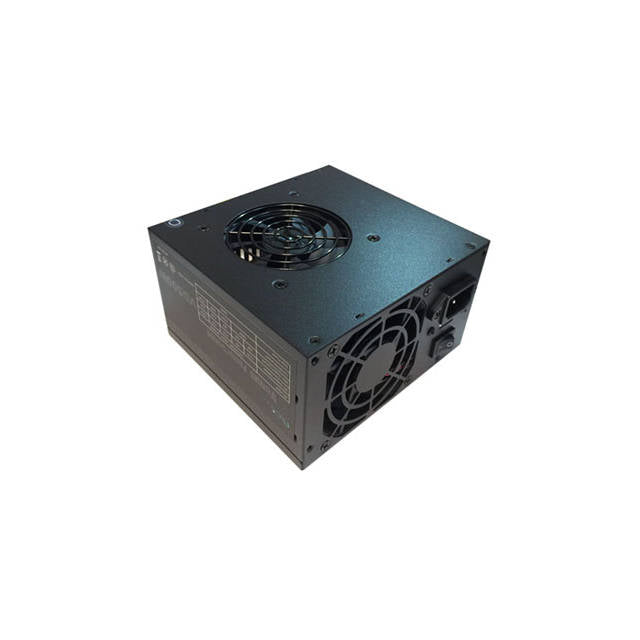

• Mfr Part Number: ATX-AD500W

• Features:
  • 500W Power with two 8cm black fans
  • High stability with 5% tolerance of 5V, 3.3V & 12V output

  • High quality components and housing

  • 20 + 4 pin main connector can be used for 20 pin or 24 pin
• Maximum Power: 500 W
• Material: Metal

• Input:
  • Voltage Range: 115 - 230V

  • Frequency: 50 - 60Hz

  • Current: 8A for 115VAC, 4A for 230VAC

• Type: ATX 12V

• Output: +3.3V @ 16A, +5V @ 16A, +12V @ 36A,  -12V @ 0.3A, +5Vsb @ 2.5A
• Connectors: 1x 20/24pin Main Power Connector, 1x 6+2pin PCI Express Connector, 1x 4pin P4 Connector, 3x SATA Connectors, 4x Peripheral Connectors, 1x Floppy Connector

• Fan: Forced air ventilation by 2 x 80mm black fan
• Color: Black sandblasting coated case
• Dimensions (WxLxH): 5.5 x 5.9 x 3.4 inch / 140.0 x 150.0 x 85.0 mm
• Weight: 3.0 lbs
