Specifications

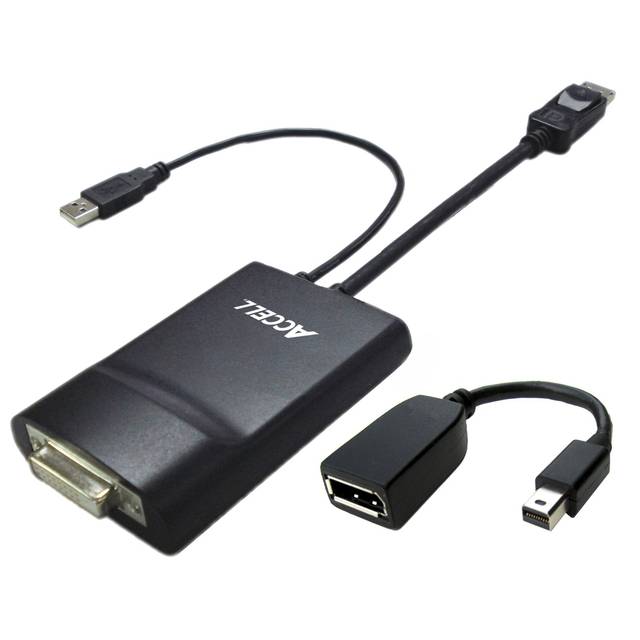

• Mfr Part Number: B087B-007B
• Features:
  • Convert to a Mini DisplayPort Connector Using the Enclosed Adapter
  • Up to 10.8Gbps Throughput Over 4 Lanes (330MHz total Pixel Clock Rate)
  • Supports DVI-D Dual-Link Resolutions to 2560x1600@60Hz or 1920x1080@120Hz for 3D Monitors
  • Supports DVI-D Dual-Link or DVI-D Single-Link Monitors
  • Engineered for a Fast and Easy Set-up, No Software to Install
  • Supports Single-Link DVI or Dual-Link DVI with a Built in Active Protocol Converter
• Connector Type:

  • USB Male Power Connector, DVI-D Female Connector, DisplayPort v1.1a Male Connector

  • DisplayPort Female Connector, Mini DisplayPort Male Connector
• Compliance: DisplayPort version 1.1a, HDCP version 1.3, DVI version 1.0
• Connectivity: 1x Male DispayPort, 1x Female DVI-D Port, 1x Male USB Port
• Resolution:
  • 2560 x 1600 (WQXGA) @ 60Hz 24-bit color
  • 1920 x 1200 @ 120Hz for 3D projector
  • 1920 x 1080 @ 120Hz for 3D LCD
• Length: 14 inch / 340 mm
