Specifications

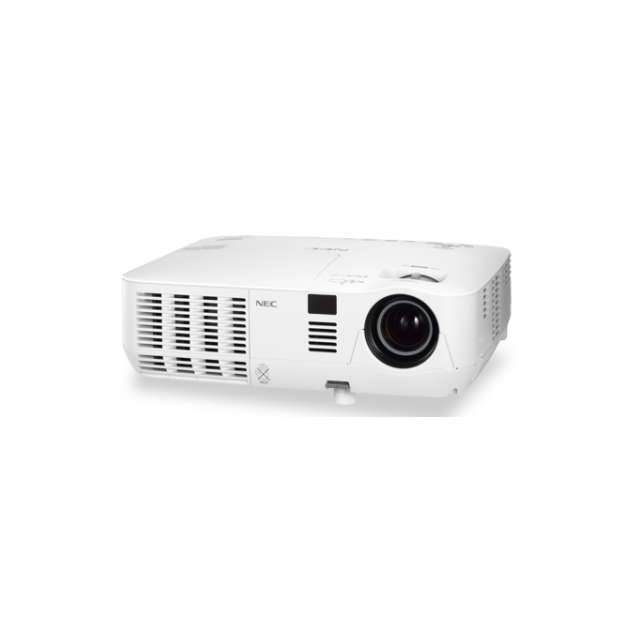

- Mfr Part Number: V260
- Display Technology: DLP (0.55" DMD)
- Resolution: Native - SVGA 800 x 600; Maximum - UXGA 1600 x 1200
- Light Output(lumens): 2600 normal / Eco = approx. 70% of normal mode
- Contrast Ratio (up to): 2000:1
- Lamp Type: 180W AC
- Lamp Life (up to): 3500 hours (normal); 5000 hours (eco)
- Screen Size (diagonal): 33 ~ 300 inch / 0.84 ~ 7.6 m
- Throw Ratio: 1.95 ~ 2.15
- Projection Distance: 3.9 ~ 39.4 ft / 1.2 ~ 12 m
- Projector Angle: 14° (wide); 12.7° (tele)
- Lens:
- Zoom: 1.0 ~ 1.1
- Focus: Manual
- F-number, f-number: F= 2.41~2.55mm, f= 21.83~24mm
- Keystone Correction: ±40°
- Scan Rate: Horizontal - 15~100 kHz; Vertical - 50~120 Hz
- Supported Video Standards: NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
- SD/HD Video Signal Compatibility: 480p, 576i, 576p, 720p, 1080i
- PC Signal Compatibility: SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
- Macintosh Compatibility: Yes
- Input/Output Terminals:
- RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E
- Video 1: RCA
- Video 2: S-Video
- Audio 1: 1/8 inch stereo
- Monitor out: VGA 15-pin D-sub
- Audio: 7W speaker
- External Control: RS-232, IR
- Sync Compatiblity: Separate Sync/ Composite Sync/ Sync on G
- Power: 100~240V AC, 50/60 Hz
- Input Current: 2.6 A
- Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 278W/ 216W/ 4W/ 0.5W
- Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Fan Noise: 34 dB (normal) / 31 dB (eco)
- Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
- Dimensions (WxDxH): 12.2 x 9.7 x 3.7 inch / 310.0 x 95.0 x 247.0 mm
- Weight: 5.5 lbs / 2.5 kg
Vendor: NEC Display Solutions
