Specifications

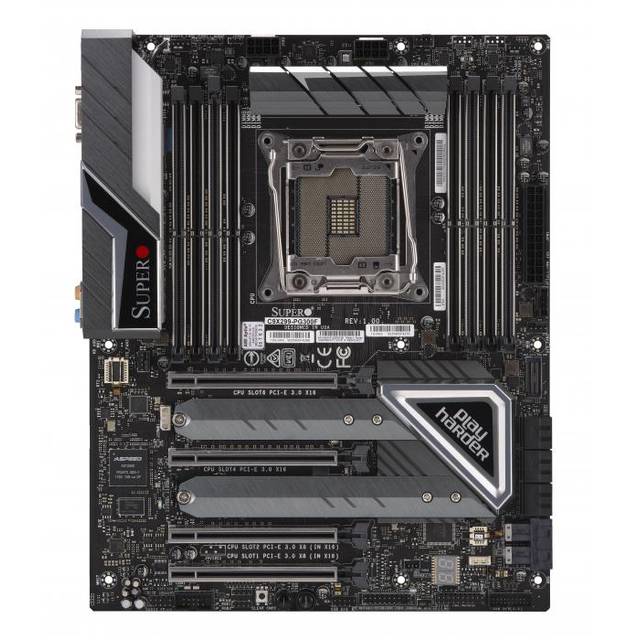

• Mfr Part Number: MBD-C9X299-PG300F-O
• CPU: LGA2066
  • Supports Intel Core i7 X-series Processor
  • Supports Intel Core i9 Extreme X-series Processor
  • Supports Intel Core i9 X-series Processor
  • Support up to 165W TDP
  • Support Intel Skylake-X refresh CPU

• Chipset: Intel X299
• Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 128GB

• Slots: 4x PCI-Express 3.0 x16 Slots
• SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Video: Aspeed AST2500 BMC Graphics
• Audio: ALC 1220 High Definition Audio CODEC

• LAN: Intel I210-AT and Aquantia AQC107 10G Gigabit Ethernet Controllers
• Ports: 2x USB 3.1 Ports (1 Type A, 1 Type C), 4x USB 3.0 Ports (2 rear, 2 via header), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x RJ45 LAN Port, 1x RJ45 10GBase-T port
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
