Specifications

• Mfr Part Number: FS116NA

• Network Ports: 16x 10/100 Mbps Auto-speed-sensing UTP Ports

• Standards Compliance:
  • IEEE 802.3 10BASE-T Ethernet

  • IEEE 802.3u 100BASE-TX Fast Ethernet

  • IEEE 802.3x Full-duplex Flow Control

• Performance:
  • Forwarding Modes: Store-and-forward

  • Bandwidth: 3.2 Gbps
  • Network Latency: Less Than 20ms For 64-byte Frames In Store-and-forward Mode For 100 Mbps To 100 Mbps Transmission
  • Buffer Memory: 512 KB
  • Address Database Size: 8,000
  • Addressing: 48-bit MAC Address

  • Mean Time Between Failure (MTBF): 353,000 Hours
  • Acoustic Noise: 0 dB

• AC Power: 12W (12VDC, 1A)

• Status LEDs: Power, Link, Speed, And Activity Indicators Built into Each, RJ-45 Port

• Safety Agency Approvals: UL Listed (UL 1950)/cUL, IEC950/EN60950

• Electromagnetic Emissions: CE Mark, Commercial, FCC Part 15 Class A, EN55 022 (CISPR22), Class A, VCCI Class A, C-Tick

• Dimensions: 11.3 x 4.1 x 1.1 inch / 287.0 x 103.0 x 27.0 mm

• Weight: 2.0 lbs / 0.9 kg

• Package Contents:

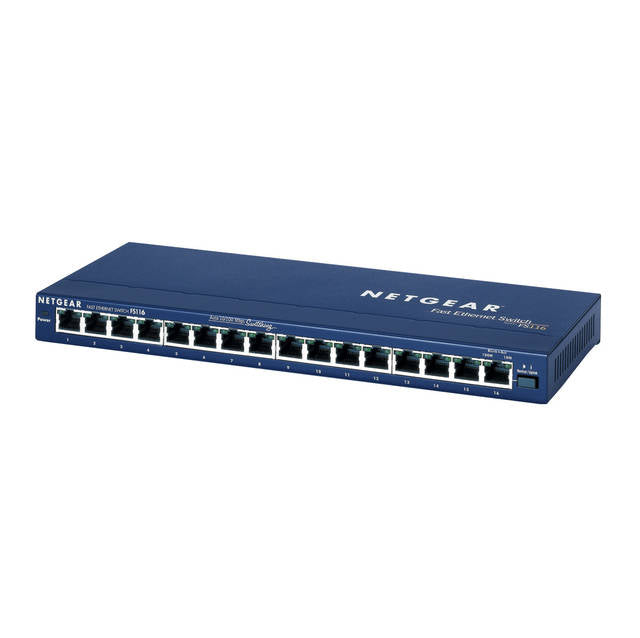

  • ProSafe FS116 Ethernet Switch

  • Wall-mount kit

  • AC adapter

  • Quick Installation Guide

  • Warranty/support information card
