Specifications

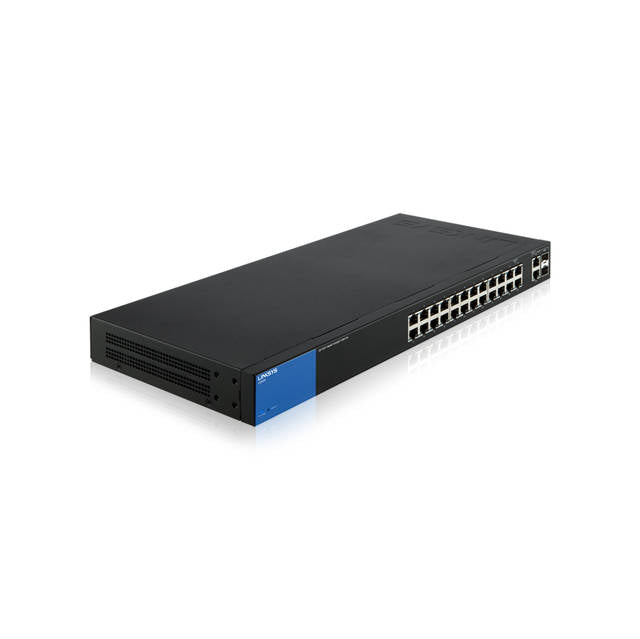

• Mfr Part Number: LGS326
• Features:
  • Quality of Service (QoS) Traffic Prioritization
  • Network Growth Potential
  • Advanced Network Security
• Standards:
  • 802.3 10Base-T Ethernet
  • 802.3u 100Base-T Fast Ethernet
  • 802.3ab 1000Base-T Gigabit Ethernet
  • 802.3z Gigabit Ethernet
  • 802.3x Flow C ontrol
  • 802.3ad
  • 802.1d STP
  • 802.1q/p VLAN
  • 802.1x Port Access Authentication
  • 802.3az Energy Efficient Ethernet
• Ports: 24x RJ45 Copper FE/GE Ports, 2x RJ45 & SFP Combo Ports
• CPU Memory DRAM: 128 MB
• Forwarding Rate: 38.69 Mpps
• Switching Capacity: 52 Gbps
• MAC Address: 8K
• Jumbo Frame (FE, GE): 9K
• Status LEDs: System (blue), Link/Act (green)
• Number of VLANs: 128 active VLANs (4,096 range)
• VLAN:
  • Port - based and 802.1q tag - based VLANs
  • Management VLAN
  • Guest VLAN support
  • Dynamic VLAN assignment via Radius server with 802.1x client authentication
• HOL Blocking: Head of line (HOL) blocking prevention
• Web User Interface: Built in Web UI for easy browser - based configuration (HTTP/HTTPS)
• SNMP: Version 1 and 2c
• Firmware Upgrade: Web browser upgrade (HTTP) and TFTP
• Port Mirroring: Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer
• RMON: Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
• Other Management: Telnet (menu - driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
• Security: 802.1x Radius authentication, DHCP snooping, IP - MAC binding, port security supports limited dynamic lock and locked MAC address, management access control
• Link Aggregation: IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
• Storm Control: Broadcast, flooding, and multicast
• Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
• IGMP Snooping:
  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits
  • bandwidth - intensive video traffic to only the requestors
  • supports 256 multicast groups
• QoS Priority Levels: 4 hardware queues
• Scheduling: Priority queuing and weighted round robin (WRR)
• Class of Service: Port - based, 802.1p priority - based, IPv4/v6 IP DSCP - based
• Auto Voice VLAN: Voice traffic is automatically assigned by OUI to a voice - specific VLAN and treated with appropriate levels
• Power:
  • Input: 100-240V AC, 50/60Hz (0.7A max)
  • Green Power Mode: EEE+, Short Reach + Energy Detect
  • System Power Consumption w/o PoE+: 110V - 17.62W; 220V - 17.72W
• Dimensions (WxLxH): 7.9 x 17.3 x 1.7 inch / 200.0 x 440.0 x 44.0 mm
• Weight: 5.33 lbs / 2.424 kg
